CC1101 433MHz Expansion Board – Rabbit-Labs®

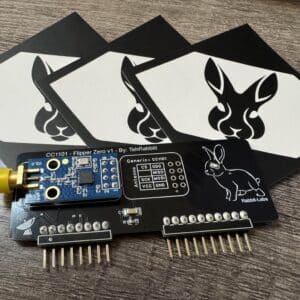

#### This is a custom “universal” carrier board designed to house the two most common CC1101 modules available.   **All Surface-Mount components and headers come pre-soldered!**   *The Surface-Mount LED is RED. If you’d prefer a different color, you can either replace it or order the barebones version and solder it yourself. If you choose to replace it, the pad size is 0603   I designed this board to allow for the attachment of an external CC1101 chip.   I created this board as I realized there needed to be a cheaper, more clean solution as opposed to proto boards and a bunch of wires. I also incorporated the pinouts of the two most common CC1101 modules available to ensure module availability doesn’t become an issue.   Antennas are NOT included, but, do not fear, they can be added in the drop down menu for a small additional cost.
