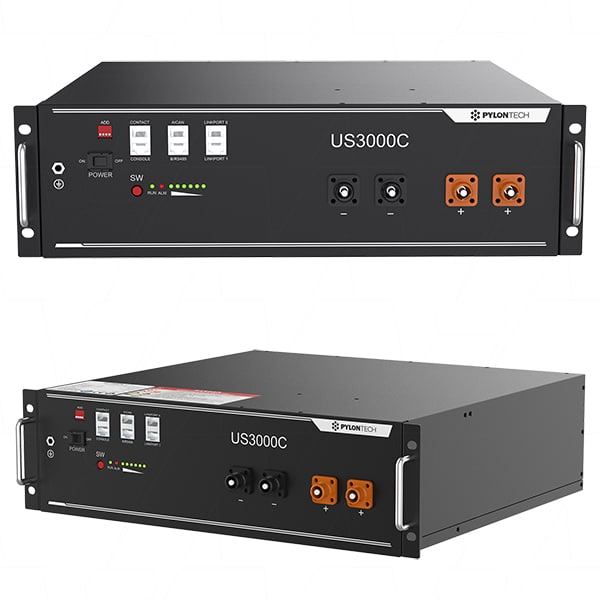

US3000C 48V 74Ah 3552Wh rack mounted battery module LiFePO4 15S2P

Description Model No US3000C Description 48V 74Ah 3552Wh rack mounted battery module LiFePO4 15S2P Application Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power Chemistry Lithium Iron Phosphate (LiFePO4) Voltage 48V Nominal Capacity 74Ah Watt Hour 3552.0Wh Maximum Continuous Discharge Current 74A Size 3RU Width 442mm Height 132mm Length/Breadth/Depth 420mm Weight 32000g Brand Pylontech US3000C 48V 74Ah Rack Mounted LiFePO4 Battery Module Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel. US3000C is the latest version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech. Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards. Features: Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications Usable capcity of 3.37kWh @ 48 VDC Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C) Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations Modular design gives the you the power to design systems from 3.5kWh to a commercial sized 1.704MWh Compatible with many available Hybrid inverters Backwards Compatible with existing US series products Pre-charge function to pretect ESS from surge currents Safety Cert. CE,TüV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3 Communication Protocols: CAN, RS485, RS232 15 Year Design Life 10 year Warranty Clean Energy Council Approved (CEC) *Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger System Integration: The Pylontech US3000C battery can be integrated with many of the worlds leading inverter brands. Depending on the Inverter brand a Victron Type A or B VE.Can to CAN-Bus Cable maybe require. The US3000C requires a VE.Can to CAN-bus BMS Type A Cable 1.8m (64900-569) to communicate with Victron Venus Devices. Important Information: Please check the Pylontech compatibilty guide to see if your inverter uses RS485 or Can Communication protocols. When using RS485 protocol, This Pylontech Battery can be connected in up to 6 strings of 16 batteries for a total of 96 US3000C batteries in parallel. No LV Hub is required. When using Can protocol,This Pylontech Battery can be connected in up to 6 strings of 16 batteries per LV Hub (6×16=96 Batteries per LV Hub), A total of 5 LV Hubs can then be paralleled up for a total of 480 US3000C batteries in parallel.(96×5=480 Batteries) No Series connection allowed External BMS A LV-HUB communications hub is required when more than 1 string of batteries is paralleled using Can Communications Protocol. A single LV-HUB communications hub can manage up to 6 strings of 16 batteries for a total of 96 US3000C batteries per LV-Hub A total of five LV Hubs and their associated 96 batteries can then be parralled to a total 480 US3000C Batteries. Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub. Communications: RS232 RS485 CAN SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
