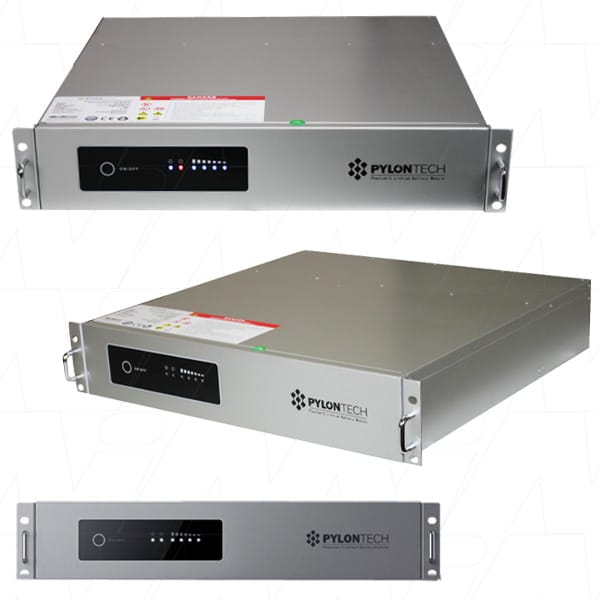

PHANTOM-S 48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P

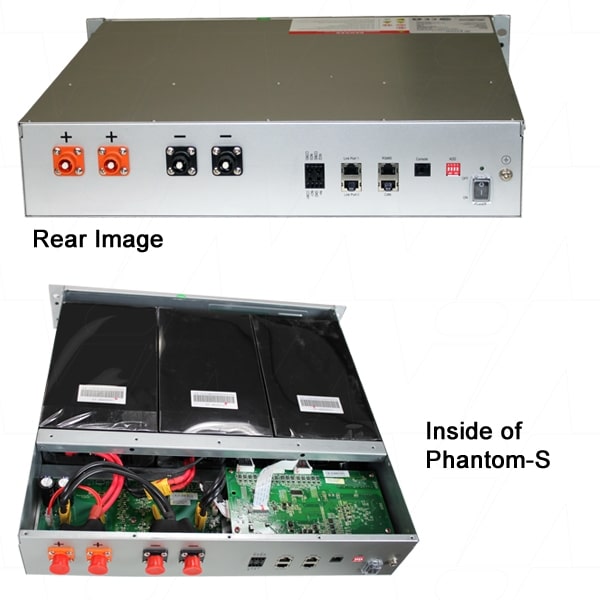

Description Model No PHANTOM-S Description 48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P Application Home Power Storage, Telecommunications, Off Grid power, Industrial Power Chemistry Lithium Iron Phosphate (LiFePO4) Voltage 48V Nominal Capacity 50Ah Watt Hour 2400.0Wh Maximum Continuous Discharge Current 50A Size 2RU Width 442mm Height 88.5mm Length/Breadth/Depth 440mm Weight 24000g Brand Pylontech Phantom-S 48V 50Ah Rack Mounted LiFePO4 Battery Module Phantom-s is a member of HESS battery system designed by Pylontech. Its long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech. Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards. The Phantom-S is the same size and specifications as the US2000. The Phantom-S has an aesthetically pleasing facia with all cabling at the rear of the module. Features: Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications Usable capcity of 2.16kWh @ 48 VDC Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C) Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh Compatible with many available Hybrid inverters Safety Cert.TüV, CE, R0HS, UN38, IEC62619 Communication Protocols: CAN, RS485, RS232 15 Year Design Life 10 year Warranty System Integration: The Pylontech Phantom-s battery can be integrated with many of the world’s leading inverter brands. Please contact us if you require any information and/or documentation relating to to this. Important Information: This Pylontech Battery can be connected in Unlimited Parallel configurations. No Series connection allowed External BMS A LV-HUB communications hub is required with each string of 8 parallel units Communications: RS232 RS485 CAN SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
