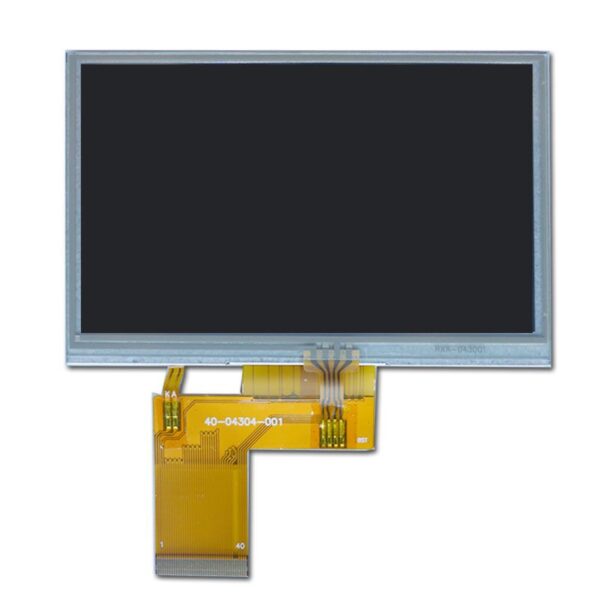

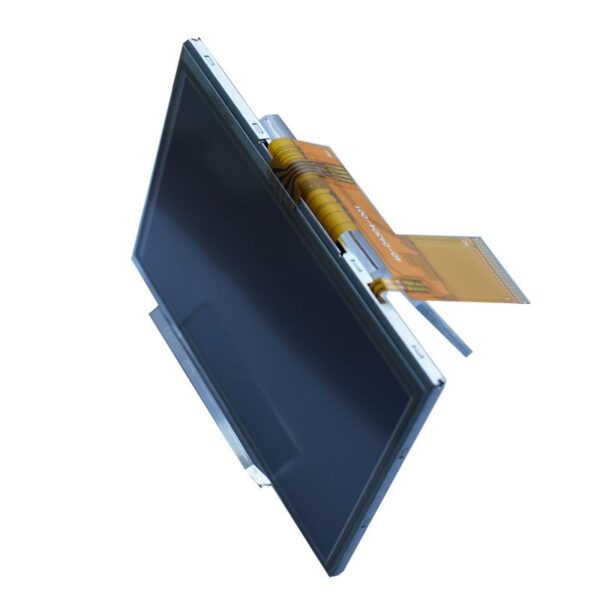

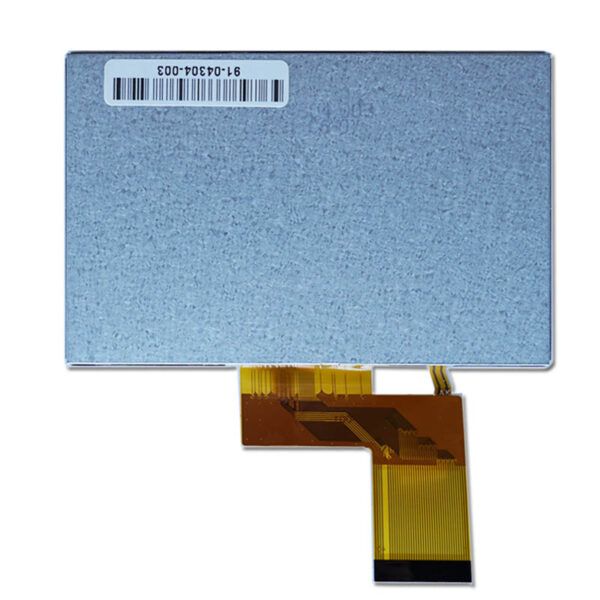

4.3 inch Resistive Industrial Touch Display 480*272 Pixels

Description 4.3 inch Resistive Touch Display Features Here are the key points about this 4.3 inch Resistive Industrial Touch Display : The active area of the 4.3 – inch Resistive Touch Display is 95.04 mm in width and 53.86 mm in height. The module provides a viewing angle of 60° for left and right directions and 50° for up and down directions, enabling good visibility from multiple perspectives. Display adopts an RGB 40 interface for reliable data transfer. It can operate effectively within a temperature range of -20°C to 70°C. It can be safely stored in the temperature range of -30°C to 80°C, ensuring reliability in various environments. 4.3 inch Resistive Industrial Touch Display with 4 line The 4.3 inch LCD Display Module features a 4-line resistive touchscreen that enhances user interaction by reliably detecting pressure applied to the screen surface. Comprising two flexible transparent layers separated by a small gap, the touchscreen registers touch when pressure causes the layers to make contact. The 4-line configuration utilizes four wires to improve accuracy and responsiveness, making it particularly effective for applications that require precise input and feedback. 4.3″ TFT-LCD Product Specifications Model Number 91-04304-003 Operating Temperature -20~70 Size 4.3 Storage Temperature -30~80 Resolution 480*272 LED Lifetime 20000 Outline Dimension 134.8*77.82*5.2 Touchscreen Support capacitive Active Area 95.04*53.86 Contrast Ratio 500:01:00 Brightness(cd/m²) 300 Power Supply 3.3V Interface RGB Display Type Color LCD View Direction 6 O”clock Customizable Parts Display Cable We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance. Customized glass and touch screen In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage. Contact us to get the best customized solution.   We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color). Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours. Visual access control displays deliver high brightness, HD quality, and shape customization. Submit your project requirements via our form for a personalized solution within 48 hours.
