100 Pcs Lever Connectors Nuts 4 Con...

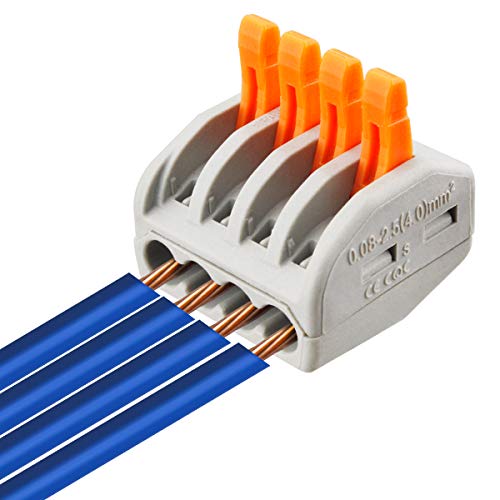

Wire Cross section:0.08~4.0mm²(solid), 0.08~4mm²(stranded) Rated Voltage: 250V/600V Rated Current: 32A Shell Material: Germany Bayer flame retardant PC Internal Material: USA DuPont PA Guide Strip: Electrolytic copper (Surface tin plating) Spring: Nickel chromium alloy steel Product Size: 39(L)*13.4(W)*14.5(H)mmHow to use our products: First Step Strip the wire according to the specified length. Second Step Dismantle the orange operation handle straight and plug the wire into the hole. Third Sted lower the handle.Problems in our lives: Because the electrical tape, the wiring cap and other connections are prone to aging, falling off, poor insulation performance, etc., the safety hazard is formed, which may cause personal injury such as electric shock or a short circuit of the wire to cause a fire. In addition, as the use of home appliances increases, the power load increases, such as poor contact at the wire connection (excessive resistance at the connection), and large resistance and large current cause heat increase, which will be a huge safety hazard.XHF solves these problems: The XHF connector completely avoids the above-mentioned safety hazards caused by poor connection; our connector uses ROHS-compliant materials and is environmentally friendly; UL Certification.the shell is made of flame-retardant transparent PC, nylon PA66, and the conductor is tinned with pure copper. Small, low electrical loss, imported stainless steel circlip, and durable, reusable.【UL Listed】 Long life, no corrosion, aging resistance, pressure resistance, high temperature and normal work. There is a test hole on the back of the connector. Test holes can be used to check if the wires are energized. 【Efficient】 No tools required in use, one plug can be used, greatly reducing the wiring work time. In fact, for home decoration, after the vertical connection terminal technology, each wire connection will save the wire length of about 500px , saving more than 80% of working hours, the comprehensive cost is greatly reduced. 【Universal compatibility】 Suitable for soft and hard single-strand and multi-strand. Widely used in lightings, fans, automatic doors and all small appliances. 【Practical】 The lever is a reusable and innovative connector. If you need to replace other wires, simply pull up on the small levers, pull out what you need and replace them. The XHF lever features a special scientific design that saves space. When you combine wires, you don’t need to worry about the distortion between the wires. The XHF cable connector will help you create a clean and beautiful house. 【Convenience】 You can connect wires without any tools with your hands. Push the orange handle to 90° and plug in the wire (peel the wire case to 0.35-0.47 inches and make sure the wire is inserted into the end. Do not open the wire case for too long) and place the back of the wire clip. When you make an electrical connection, you only need a little power to push the lever up.
